What an air handling unit is?

Air handling unit commonly named as AHU or air handler is a marvelous equipment that handles air the way a building needs. Commonly made with light weight profiles for sturdy structure. They comprises of filter section, coil section and fan motor section.

They collects the air from outside ambient or from room, clean the air though filtration process, cool the air through coil cooling process and supply the temperature and humidity controlled air in to the room for comfort.

Fan motor section at the end of the unit is drawing this air through the duct. This is then supplying the controlled air in to the rooms or the area where it is to be served.

Finpower Air Handling Unit















 These units are normally placed inside a mechanical room or on the roof .Placement is often based on the space availability as these are comparatively larger units when compared to small standard room cooling units. These units are customized and tailor made as per the building requirements. These are provided with special accessories based on custom design like heaters, UV lamps, humidifier, heat pipes etc.

Working mechanism of air handling unit

A simple mechanism in which a filter section, coil section and fan motor section is there. Air is drawn through filter, cooling coil and then supplied through the duct to serving area. Filter section cleans the impurities in air, cooling coil which is mechanically bonded copper tube and aluminum fins cools the air, sometime provided with heater for reheating based on the temperature needed.

Do we need an air handler !!

Indoor air quality is must these days for human to live a comfortable life. Compared to other smaller units, this units gives us the flexibility of choosing wide range of airflow and capacity to cool or heat for any sized commercial residential building. This can be made as a combination to work with chilled water cooling or refrigerant based cooling mechanism.

As it’s always placed in mechanical room or roof tops, easy to access and clean to upkeep the maintenance. Reduced cost when compared to placing multiple small units to cool a particular area. Maintenance on multiple units is more when compared to maintenance on one large indoor unit

Careful selection of air handling unit

If the unit is not well designed understanding the load and application that could be a waste of money and energy. It is also recommended to have multiple unit so that in case one unit is failed, end user expecting the comfort should not be effected.

Application of air handling units

AHU’s are commonly used in commercial and industrial buildings, such as office buildings, hospitals, schools, Shopping malls, and manufacturing facilities. They play a critical role in maintaining indoor air quality and ensuring the comfort and health of building occupants

Main use of air handling units !!

The main use of an air handling unit (AHU) is to regulate and circulate air within a building to maintain a comfortable and healthy indoor environment. They are commonly used in commercial and industrial buildings, such as office buildings, hospitals, schools, and manufacturing facilities. They serve several important functions, including:

Heating and cooling: Air handler can include heating and cooling elements that help to regulate the temperature of the air being circulated throughout the building.

Humidity control: They can also include humidifiers and dehumidifiers that help to regulate the humidity levels in the building.

Air filtration: They typically include filters that remove dust, pollen, and other airborne contaminants from the air being circulated, improving indoor air quality.

Ventilation: They can also include provisions for bringing in fresh outdoor air to replace stale indoor air, improving overall air quality and promoting occupant health.

Overall, the use of an Air handling unit is critical for maintaining a comfortable and healthy indoor environment, improving indoor air quality, and ensuring the safety and well-being of building occupants.

Air handling units use a chiller or Condensing unit or VRF as heat source equipment and exchange heat between chilled/heated water or refrigerant and air to adjust the air temperature. Therefore, air handling units offer excellent operational flexibility. For example, medium-/large-size buildings can be installed with a combination of chillers and AHU’s, while small-/medium-size buildings can use a combination of VRF‘s and AHU’s.

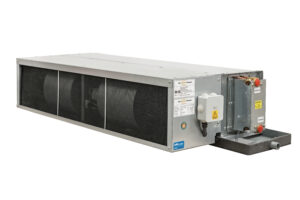

Differences between air handling unit and fan coil unit

In a sense, air handling units are installed for the purpose of cooling/heating the entire building, but fan coils are used for cooling/heating individual rooms. Fan coil units also require a heat source medium.

Generally, heated/chilled water serves as a heat medium for fan coil units (FCU). Water heated or chilled from another location is sent to the fan coil unit for use in providing warm/cool air to the rooms.

Fan coil unit also come with accessories as option based on the design. Some fan coil units are provided with heater banks before or after the cooling coil based on the purpose of sensible heating or de humidification purpose.

Some designs demands for UV in front of the coil at discharge side to eliminate pathogens especially where the air is been served to sensitive areas like laboratory, hospitals rooms etc.

Differences between air handling unit and Fresh air handling unit

A Fresh Air Handling Unit (FAHU) is a type of AHU that is specifically designed to bring in and condition fresh outside air. It is typically used in buildings where there is a high demand for fresh air, such as hospitals, laboratories, or other commercial / residential buildings where indoor air quality is of utmost importance.

Unlike a regular AHU, a FAHU does not recirculate air within the building. Instead, it pulls in fresh outside air, filters it, and then conditions it before distributing it to various parts of the building. There are several options of energy saving with heat recovery wheel and de humidification and RH factor maintenance by heat pipe.

In summary, the main difference between an AHU and a FAHU is the source of the air they handle. While an AHU can handle both fresh outside air and recirculated air from within the building, a FAHU is specifically designed to handle only fresh outside air.

DX – FAHU Connection – One Point Sheet

Installation Recommendations for Fresh Air Handling Unit(FAHU): Select a location that is convenient and safe for installation and subsequent maintenance work. This includes replacing all internal components around the unit (e.g. removing heat exchange coils, filters, etc.).

Installation Recommendations for DX Condensing Units: Please follow the recommendation to avoid performance drop. Ensure the list of materials received in the project. FAHU, number of CDU as per the agreed capacity, VFD starter panel with logic sequence been programmed in controller.

Particular attention should be paid to the location of the condensing unit with respect to structures, obstructions, other units, and other factors that may affect airflow. If possible, it should not completely cover the top of the device. However, if it must be placed under an obstacle in a vertical position, a distance of at least 1.5 meters should be maintained between the top of the device and the obstacle. The specified dimensions meet the requirements for air circulation only. Please refer to applicable regulatory requirements before confirming clearance.

Notes on connections to be taken into consideration

Place the equipment on a solid and smooth surface with proper vibration Arrestance. Units to be ideally placed where dust and debris are not sucked by the condenser coil

  • Hot Air: Open to air till 3 mtr all around.
  • Intake: Hot discharge from CDU’s not to pass through FAHU intake.
  • Pipe sizes mentioned in the CDU datasheet are for a 15 mtr distance, if exceed, Kindly contact the manufacturer or representative.
  • The suction line is to be properly insulated.
  • The condensing unit is not to be placed directly near the suction of the FAHUs. The approximate distance of 6 meters is to be maintained between FAHU and condensing units.
  • The condensing units are not to be installed in an enclosed area or a well-like structure leading to short cycling of the exhaust air from the condensing unit. Wall and metal louvers forms as wall to be maintained with 1.5 mtr and condensing units to another unit to be maintained with 3 mtr distance.
  • All the fresh air handling units are to be installed with sand trap louvers or cowls.
  • The maximum operating temp for proposed CDUs is 52° C.
  • Always direct torch flame away from valve body when brazing and wrap expansion valve body with a wet rag.
  • Valves may be installed in any position but should be located as close as possible to the distributor or evaporator inlet.
  • Attach the remote bulb to the suction line as close to the evaporator outlet as possible on a horizontal run. Position the bulb at the 3 or 4 o’clock position. Clean the surface of the suction line where the remote bulb is to be attached, and then securely fasten the bulb with the straps provided.
  • Connect one end of the external equalizer line to the valve. Connect the other end to the suction line slightly downstream from the remote bulb location and position so that it cannot siphon oil from the suction line.

Condensing Unit – Manufacturer & Supplier of Condensing Units in UAE

 Condensing Units / Air-Cooled Condenser

Firstly Finpower manufactured – Air-cooled condensers / Condensing Units use ambient air in order to cool and cycle refrigerant. Secondly, these can often be seen outdoors, as they are commonly used in exterior units in residential and rooftop cooling systems. Thirdly, and most importantly, the condensing unit manufactured by Finpower is a key component of all vapor compression systems.

The condenser is an important component of any vapor compression system. In a typical refrigerant condenser, the refrigerant enters the condenser in a superheated state. It is first de-superheated and then condensed by rejecting heat to an external medium. The refrigerant may leave the condenser as a saturated or a sub-cooled liquid, depending upon the temperature of the external medium and design of the condenser.

Why Air-cooled condensing unit?

  • Availability of air is in plenty.
  • Disposal of warm air is not a problem.
  • Simple in construction, as there are no pipes required for air.
  • The fouling of the condenser is small.
  • The maintenance cost is low.

What makes Finpower condensing unit?

  • Compressor: Single or Dual Hermetic sealed scroll compressors are used due to the high efficiency, which results from higher compression achieved at a lower rate of leakage.
  • Condensers: They are basically heat exchangers in which refrigerant undergoes a phase change. However, they are formed of seamless smooth surface or inner grooved copper tubing with mechanically bonded aluminum alloy plate fin slit type.
  • Air as an external medium: to cool the superheated vapor and then condensed by rejecting heat to an external medium
  • Cabinets: The unit cabinets are constructed of heavily zinc-coated galvanized steel. These are chemically cleaned and phosphatized to bond the specially formulated corrosion inhibiting, polyester powder coating.
  • Condenser Fan & Motor: Direct drive propeller type, aluminum alloy blades with permanently lubricated ball bearing and internal thermal protected, class F motors.

Finpower manufacturer & supplier of Condensing Unit provides efficient, low noise, eco-design compliance with Zero ODP (R407C/R410A) refrigerant. Our premium product–condensing unit has strong built with smooth aesthetics. Similarly, Finpower manufactured – condensing units have a significant impact on the productivity, reliability & energy efficiency of the building no matters the scale of your location, In conclusion, we can provide a unit that is highly efficient, sustainable & serviceable.

Contact Us for All Your Air Conditioning Needs

Finpower is always ready to help you boost your air conditioner equipment to a new level. We are well-versed in the manufacturing of Air Handling Units, Fan Coil Units, Ecology Units, Condensing Units, Electrostatic precipitator & Package Units. Write us at [email protected] for all your queries. We want your HVAC system to be your partner in better indoor air quality.



How Does Heating and cooling system affects the Indoor Air Quality?

Did you know that your HVAC system affects your indoor air quality?

Most of the time, your heating and cooling system benefits your home’s air quality and removes airborne particles.

We at Finpower Aircon LLC, sense everyone’s mindset on the current globally affected Covid19 pandemic and all the life changing events that are occurring due to this epidemic. Working from home, caring for your loved ones, stocking up things, Kids online classes gobble a great deal of time and energy.

With all these things going around, it’s quite obvious to forget your cooling and heating system and the importance to keep it in a good working environment before summer hits.

How Does Your Air Conditioning and Indoor Air Quality Connect?

You may wonder what the connection is between your air conditioning system and the quality of your indoor air. All heating, ventilation, and air conditioning (HVAC) systems use an air filter to remove a wide variety of particles that naturally end up in our indoor air.

A quality cooling system will help to regulate the relative humidity inside your Round Rock home, which helps improve the air you breathe. Moreover, Poor humidity, whether it’s too high or too low, can lead to the presence of mold, mildew, fungus, bacteria, and viruses.

Other related systems and technologies such as air purification systems and the condition and cleanliness of your air duct system can also affect your indoor air quality.

Causes of Poor Indoor Air Quality

We are all aware that outdoor air quality has a great impact on our overall health. What we don’t realize is that the level of pollution inside our homes and offices are so much higher than the outdoors.

We spend 90% of our time indoors, as a result, indoor air quality is worse than it is outdoors.

Indoor sources:

  • Human or Animal Activities – dead skin, hair, viruses or others
  • Cigarette Smoke
  • Dust
  • Bacteria
  • Mold

Outdoor Sources:

  • Pollen
  • Dust
  • Ventilation
  • Airflow Patterns
  • Air Filtration

How to Improve Air Quality?

Comfort: Breathing clean air is one of the joys of life and is certainly a major health benefit. Hence clean air delivered at the right humidity and in the right place is a perfect foundation for optimal comfort.

Energy Efficiency: Finpower’s products are highly energy efficient.

Reliable: Finpower’s products are renowned for their reliability.

Our Product Features that helps in improving the air quality:

High-efficiency motor: High efficiency and energy saving and quite operation, ensuring efficient, safe and maintenance-free operation.

Air Vent Valve: The unit is configured with air vent valve for convenient operation & quicker discharge.

Drain Pan: It ensures quick drainage of condensate water; with spray on both sides for anti-corrosion, the tray surface is cleaner; the integrated design is adopted to avoid cold bridges.

Centrifugal Double suction fan: The centrifugal double-suction fan featuring high-efficiency wide impeller and forward-curved multi-blade is adopted to implement low speed, large air flow and low noise.

Book an Assessment

We recommend all buildings nearing and over 20 years old have a qualified technician or engineer perform an assessment on your HVAC equipment. However, they should check the units in different areas of your building and determine the air quality and operational status of your equipment. They can then make a recommendation as to the state and lifespan of your existing mechanical equipment.

Contact Us for All Your Air Conditioning Needs

Finpower is always ready to help you boost your air conditioner equipment to a new level. We are well-versed in manufacturing of Air Handling Units, Fan Coil Units, Ecology Units, Condensing Units, Electrostatic precipitator & Package Unit. Write us at [email protected] for all your queries. We want your HVAC system to be your partner in better indoor air quality.

Demand Control Ventilation | Finpower Aircon

Save Energy without compromising your Comfort & Indoor Climate

Finpower’s Demand Control Ventilation (DCV) is a HVAC control system which is regarded as the most efficient way to balance indoor air quality with energy savings. The concept of demand controlled ventilation rests on the principle of providing occupants with the right amount of fresh air, when they need it, where it is useful. With intelligent airflow management (included demand controlled ventilation), energy savings are made on every occasion that the need for ventilation is low or null, which can represent more than half the time. Conversely, an activity that emits indoor air pollution such as preparation in a kitchen, a shower, or even the release of odorous metabolic compounds, generates a need for a greater ventilation to remove the pollution quickly.  Air inlets supply fresh air to rooms like bedrooms and living rooms & extract grilles take air away from wet rooms like bathrooms and kitchens. Fan is that which exhausts the extracted air out of the building.

At every moment, demand controlled ventilation offers an optimization of heating consumption and indoor air quality, on a fully automated basis. Ventilation system is designed on this concept of DCV, which beyond being particularly effective for the comfort of the occupant, has many other benefits.

Better air renewal for greater comfort by providing the ventilation for the places that need the most. When a main room is occupied, its relative humidity increases; the air inlets then open more to increase airflow and better evacuate stale air. Activity in wet rooms (kitchen, bathroom, toilets, etc.) is accompanied by water vapor emissions; the opening of the exhaust units increases with the relative humidity, increasing the airflow and so evacuating polluted air more rapidly.

The higher relative humidity generated by breathing and human activity in the kitchen or shower, for example, can lead to destructive condensation, in which molds can grow. When the relative humidity increases dangerously, humidity sensitive exhaust units open quickly to evacuate excess moisture and eliminate the risk of condensation.















What are the benefits of HVAC Control System at Finpower?

  • Energy Savings of 10% to 40%
  • Better air quality and more comfortable spaces
  • Increased employee health and customer satisfaction
  • Reduced operating costs
  • Installation savings with Utility rebates
  • Lowered monthly Utility bills
  • Greater energy efficiency
  • Less impact on the environment

The basic functions of DCV are:

  • Air is moved where the need is
  • Always step less
  • Always supervised

DCV regulates the following

Temperature – To maintain right temperature in the required premises.

Air quality – Ensuring the best to maintain a comfort and healthy living

Humidity– So that molds are not formed inside the premises

Occupancy – to save energy.

Who should install this technology?

  • Facilities with operating hours where occupancy varies and is unpredictable.
  • Buildings that seldom reach maximum occupancy.

Facilities that may qualify include:

  • Retail Stores
  • Commercial Buildings
  • Supermarkets
  • High Rise Residential
  • Theaters
  • Lecture halls and other performance spaces
  • Places of worship
  • Schools
  • Hospitals
  • Restaurants

Finpower proves its strong acumen in designing fresh air handling unit with Demand Control Ventilation (DCV) for energy saving. DCV is also used to monitor the carbon dioxide (CO₂) concentrations. CO₂ levels continuously fluctuate in buildings and as the concentrations changes, we can assign fans to ramp up on the set points. Finpower’s Air conditioning equipment can also be supplied with high-efficiency EC motor with fan wall arrangement in supply & extract completely integrated with HMI panel, monitoring and controlling the temperature of cooling coil & run around coil to optimize the power consumption, communicating on BMS protocol which is existing in the building.

Contact Us for All Your Air Conditioning Needs

Finpower is always ready to help you boost your air conditioner equipment to a new level. We are well-versed in manufacturing of Air Handling Units, Fan Coil Units, Ecology Units, Condensing Units, Electrostatic Precipitator & Package Unit. Write us at [email protected] for all your queries. We want your HVAC system to be your partner in better indoor air quality.

Finpower AHU Dehumidifier

Discover the Benefits of Finpower’s AHU Dehumidifiers

At Finpower Manufacturing HVAC, we’re proud to offer advanced Air Handling Unit (AHU) Dehumidifiers designed to meet the diverse needs of various industries. Whether you’re managing a large commercial facility or a residential complex, our AHU dehumidifiers provide robust solutions to maintain optimal indoor air quality and comfort.



Key Features:

  1. Superior Temperature and Humidity Control: Our AHU dehumidifiers ensure precise control of both temperature and humidity, making them ideal for critical applications such as indoor pools, healthcare facilities, and data centers​. Too much moisture in the air may lead to mould and mildew growth, as well as a host of health problems for sensitive persons.
  2. Efficient Design: Featuring aluminium pentapost construction with PUF insulated double skin GI panels, our dehumidifiers are built for durability and efficiency. The units come with pre-/post-cooling or heating modules and optional Variable Frequency Drives (VFDs) for intelligent operation.
  3. Advanced Controls: Each unit is equipped with a fully functional control system, providing enhanced operational efficiency. Integration with Building Management Systems (BMS) is also available.
  4. Customizable Options: Our dehumidifiers can be customized to meet specific client needs and budget constraints.

Benefits:

  • Healthier Air Quality: By maintaining ideal humidity levels, our AHU dehumidifiers reduce the risk of respiratory issues and skin irritations, creating a healthier environment for occupants​
  • Structural Integrity: Excess moisture can lead to structural damage such as corrosion and deterioration. Our dehumidifiers help protect the integrity of your building by effectively controlling humidity levels.

Applications:

Our AHU dehumidifiers are versatile and suitable for various settings, including:

  • Indoor swimming pools
  • Healthcare facilities
  • Data centers
  • Commercial buildings
  • Residential complexes

Why Choose Finpower?

Choosing Finpower means investing in a product that combines cutting-edge technology, customizable options, and energy efficiency. Our commitment to quality ensures that you receive a reliable solution that enhances indoor comfort while reducing operational costs.

Ready to learn more about how Finpower’s AHU dehumidifiers can benefit your facility? Contact us today to discuss your specific needs and find the perfect solution tailored to your requirements.

For more detailed information, visit our website.

By understanding and leveraging the advanced features and benefits of Finpower’s AHU dehumidifiers, you can ensure a safe, comfortable, and energy-efficient environment for all.
