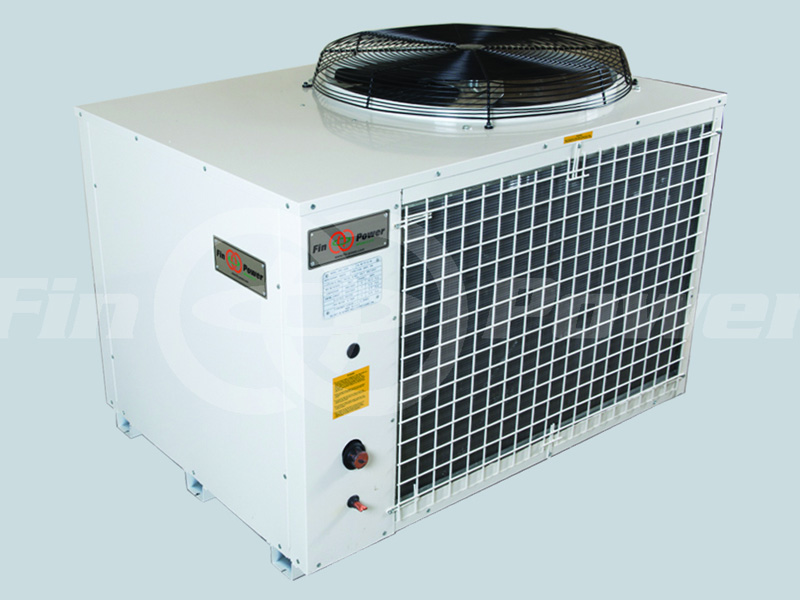

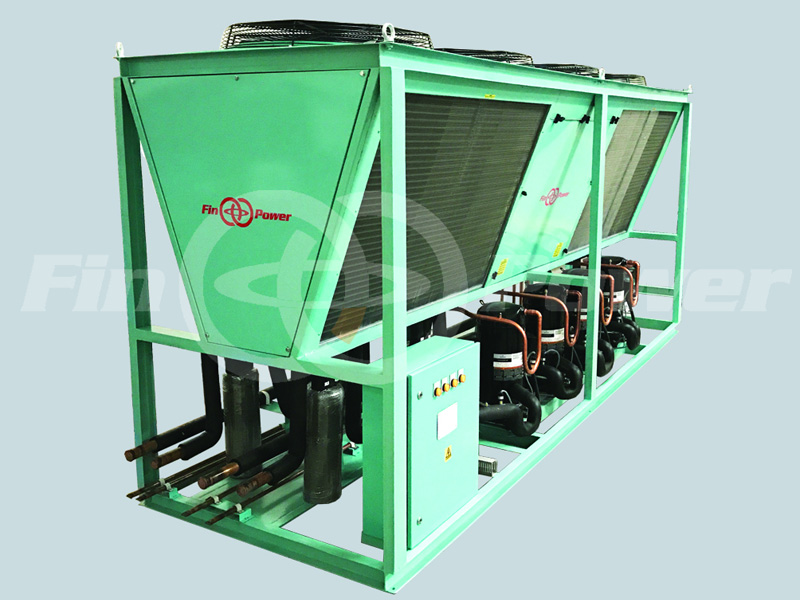

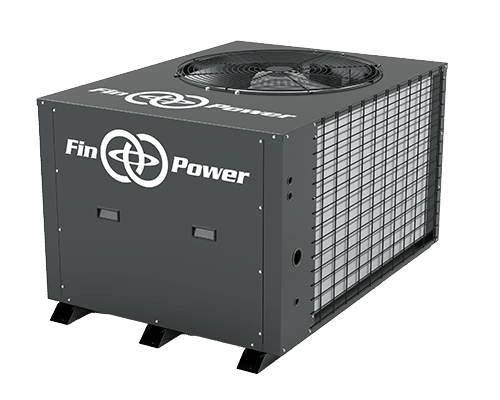

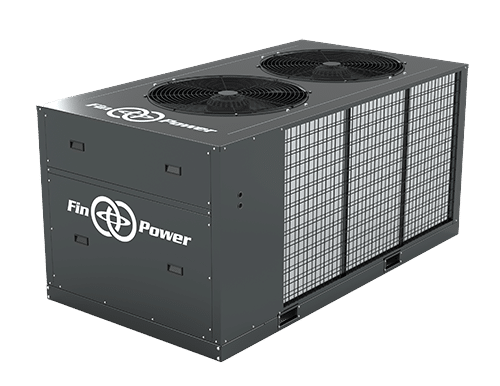

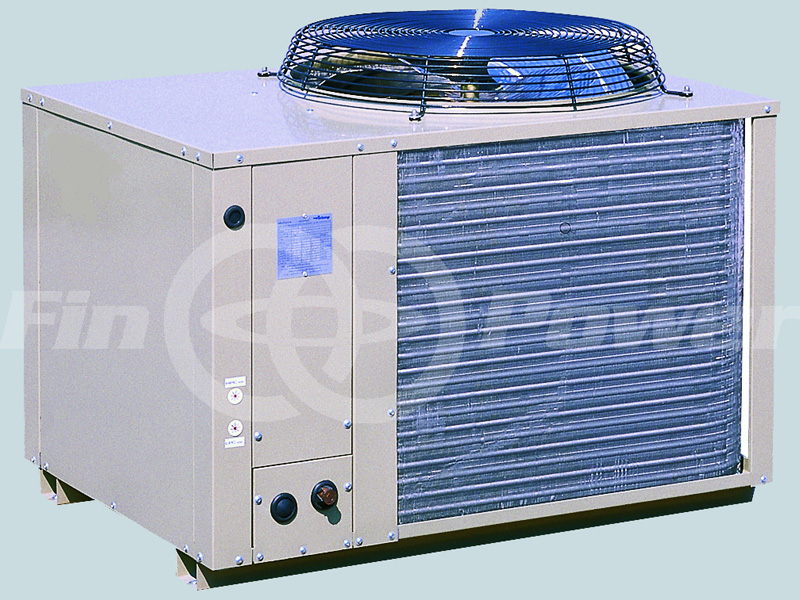

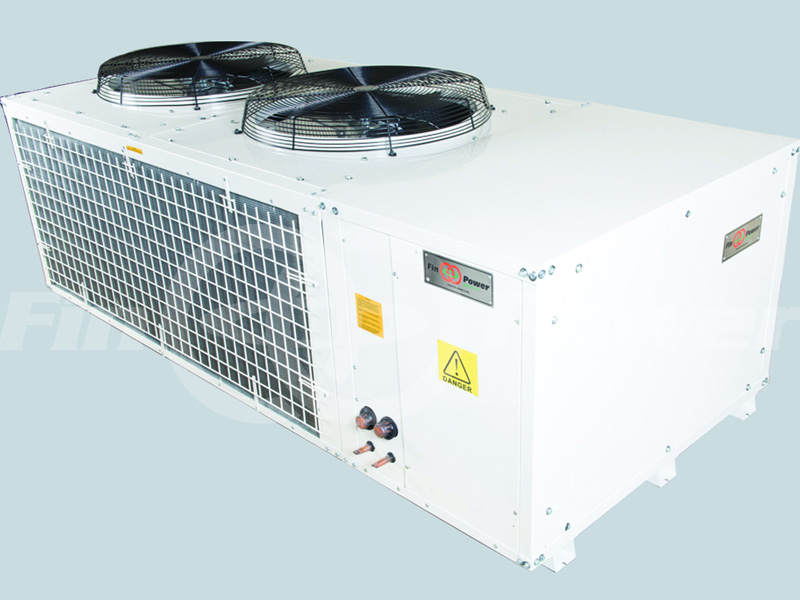

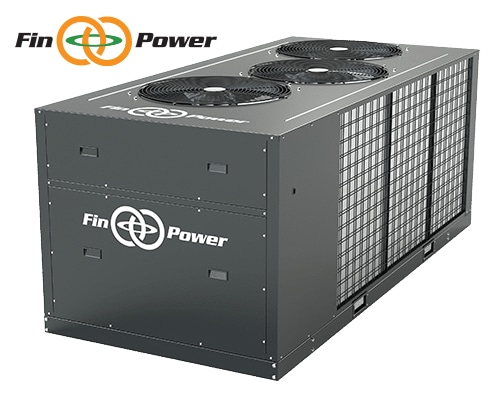

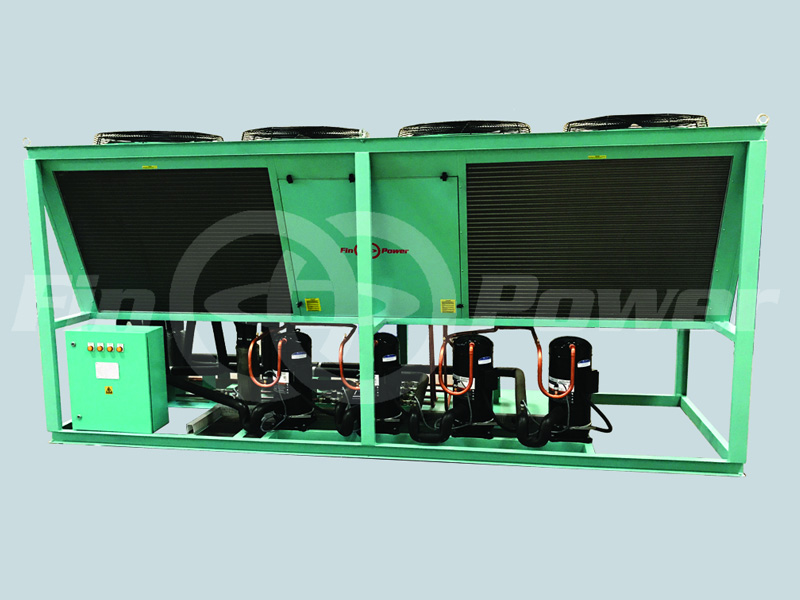

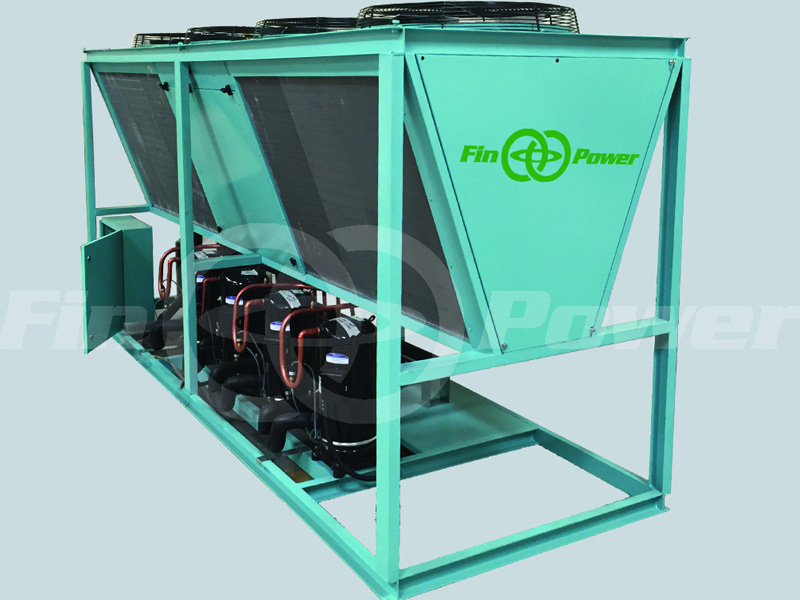

Air Cooled Condensing Units

Perfect for comfort cooling

Efficient and reliable, Finpower’s advanced air cooled condensing units are a perfect solution for comfort cooling. Easy to maintain and durable, their nominal capacity ranges from 47.4 TMBH to 680 TMBH.

Nominal Capacity: 47.4 TMBH to 680 TMBH
Model Range : FPV 04Z to FPV 10Z,  FPC 12Z to FPC 80-01

Salient Features

Designed for an ambient temperature of 85 Deg F to 115 Deg F and SST of 35 Deg F to 50 Deg F

Refrigerant: R410A and R407C

Cabinets: The unit cabinets are constructed of heavily zinc coated galvanized steel. These are chemically cleaned and phosphatized to bond the specially formulated corrosion inhibiting, polyester powder coating.

Condenser Coil: They are formed of seamless smooth surface or inner grooved copper tubing with mechanically bonded aluminum alloy plate fin slit type

Compressor: Single or Dual Hermetic sealed scroll compressors are applied together with internal compressor motor protection.

Condenser Fan Motor: Permanently split capacitor motor with permanently lubricated ball bearing and internal thermally protector.

Standard accessories:

  • High pressure protection
  • Low pressure protection
  • Magnetic contactor
  • Time delay relay
  • 220V / 240V Control Circuit
  • Crankcase heater for higher capacity unit

Optional Features

  • Expansion valve
  • Slight glass
  • Filter drier
  • Solenoid valve
  • Shut off Valve
  • Copper fins
  • Phase Protector
